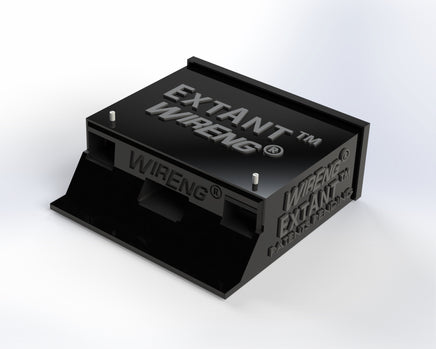

ExtAnt™ RF Signal Extractor/Injector for DJI RC Pro and DJI RC Pro Enterprise Controllers
A Revolutionary, Non-Invasive Way to Interface with All Four Antennas (the two external and the two Internal antennas) on the DJI RC Pro and DJI RC Pro Enterprise Controllers!
The ExtAnt™ by WirEng® is a new, revolutionary, and effortless way to interface with all four DJI RC Pro and DJI RC Pro Enterprise RF signals without any modification to the controller whatsoever, for instant interfacing and absolute reliability.
The ExtAnt™ was invented by WirEng® to satisfy the market demand for a way to connect to the four RF signals that the DJI RC Pro and DJI RC Pro Enterprise posses, but without any hardware modification to the controller, which means that if your DJI controller enjoys warranty coverage such warranty will not void, since your controller will remain unmodified.
You can use the ExtAnt™ to connect your DJI RC Pro and DJI RC Pro Enterprise controller to antennas, boosters, or other RF equipment instantly, simply by sliding the ExtAnt™ onto your controller and then connect the RF equipment to the four connectors on it. There are no required hardware or software modifications whatsoever in order to use the ExtAnt™ -- the ExtAnt™ is simply ready to use instantly out of the box!
All four-antenna drones compatible with the DJI RC Pro, namely the DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3 Classic, DJI Mavic 3, DJI Mini 3 Pro, and DJI Air 2S, and also all drones compatible with the DJI RC Pro Enterprise, namely the DJI Matrice 3D, DJI Matrice 3TD, DJI Dock 2, DJI Mavic 3E, DJI Mavic 3T, and DJI Mavic 3M are, of course, compatible with all four signal coming from/to the drones and from/to the controllers.
Thanks to this latest invention by WirEng®, you don't need to disassemble and modify your controller to interface with its RF signals anymore, which is not only extremely difficult, but it also has the negative consequences of voiding the DJI warranty and very high chances of damaging it. With the ExtAnt™, all you need to do is slide it onto the controller, which takes less than one second!
In summary, with the ExtAnt™ you can interface with all four DJI RC Pro and RC Pro Enterprise drone RF signals without any hardware or software modifications:
- The ExtAnt™ is the ideal solution for safely experimenting with your controller to connect antennas, boosters, and other RF devices without any risk of damaging your controller.
- The ExtAnt™ wirelessly connects to all four controller’s antennas (the two external ones and the two internal ones) without any controller’s modifications or special settings.
- The ExtAnt™ can be inserted or removed into/from your controller instantly.
- Controller can be used even when the ExtAnt™ is inserted onto the controller without connection to other devices.
- Your DJI (or third-party) warranty will not void, because there are neither hardware nor software modifications needed in order to use the ExtAnt™.
Here is how easy it is to use the ExtAnt™ in just three simple steps:
1 |
2 |
3 |
Position the controller's antennas as shown below, making sure that the two lock screws on the ExtAnt™ are up about a quarter inch (6 mm) from the ExtAnt's surface: |
Insert the ExtAnt™ all the way, as shown below, and, if desired, lock the ExtAnt™ onto the controller by turning both plastic screws clockwise (without using excessive force): |

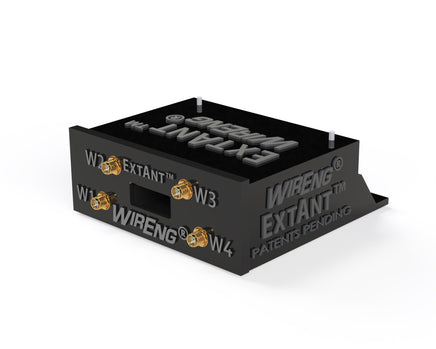

Connect your antennas, boosters, or other RF equipment* to the ExtAnt™, according to the following correspondences: W1 - Right Internal Antenna
|
|
|
|
(for your convenience, a screwdriver and two extra lock screws are included with your purchase). |
(locking the ExtAnt™ onto the controller is optional and only needed if moving around while connected). |
All four connectors on the ExtAnt™ are SMA-female type, so you will need SMA-male to connect. |
Note: The controller in the above photos is shown for application purposes only and is not included with your purchase.
*We offer quad antennas, boosters, and other equipment that is 100% compatible to the ExtAnt™. If you have any questions or concerns, please contact us here.
Not ready to buy? Consider these points:
- The ExtAnt™ makes it easy and instantaneous to interface with all four RF Signals to/from the DJI RC Pro and RC Pro Enterprise's internal SDR module.
- The ExtAnt™ wirelessly connects to all four controller’s antennas without any controller’s modifications or special settings.
- The ExtAnt™ is a "hot-swap" device and can be inserted or removed instantly, with the controller either powered on or powered off, and while actively in use controlling a drone, or in idle state.
- You can use the ExtAnt™ to connect your favorite antennas, boosters, or other RF devices* to your controller without any hardware or software modifications whatsoever.
- The ExtAnt™ works on all DJI frequency bands, modalities, and all four antennas, bidirectionally.
Your DJI warranty, if still applicable to your controller, will not void, because there are neither hardware nor software modifications needed in order to use the ExtAnt™.
Finally, the ExtAnt™ is ideal for experimenting with your controller's SDR signals, by interfacing antennas, boosters, or any other RF device to it, without any risk of damaging your controller.
For technical support, please contact us here.
Warning: Utility and Design Patents pending.
The ExtAnt™ by WirEng® comes with WirEng® extended 1-year warranty. See our warranty page for details.
For advanced technical details and specifications please visit the manufacturer's website at www.wireng.com
