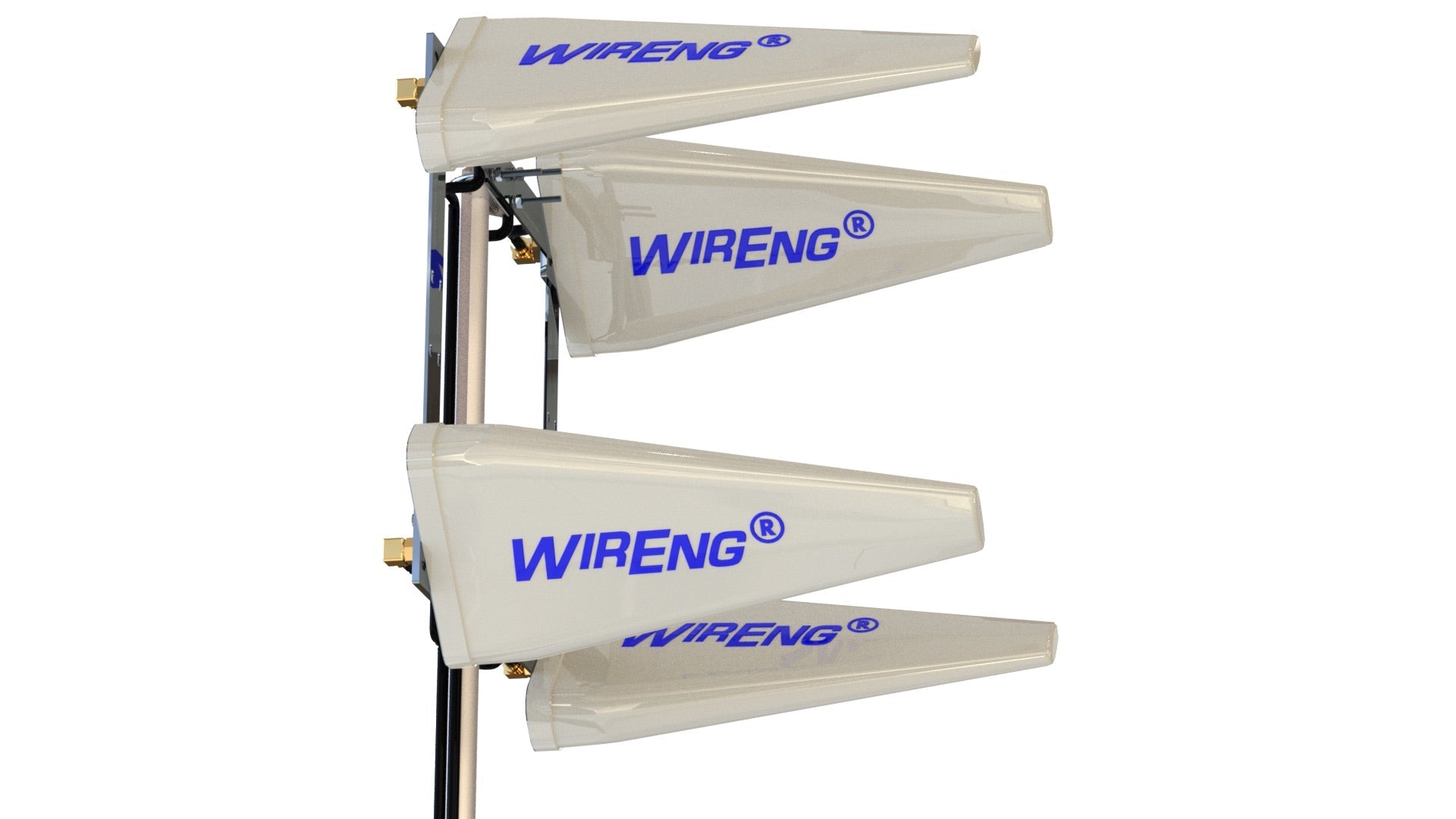

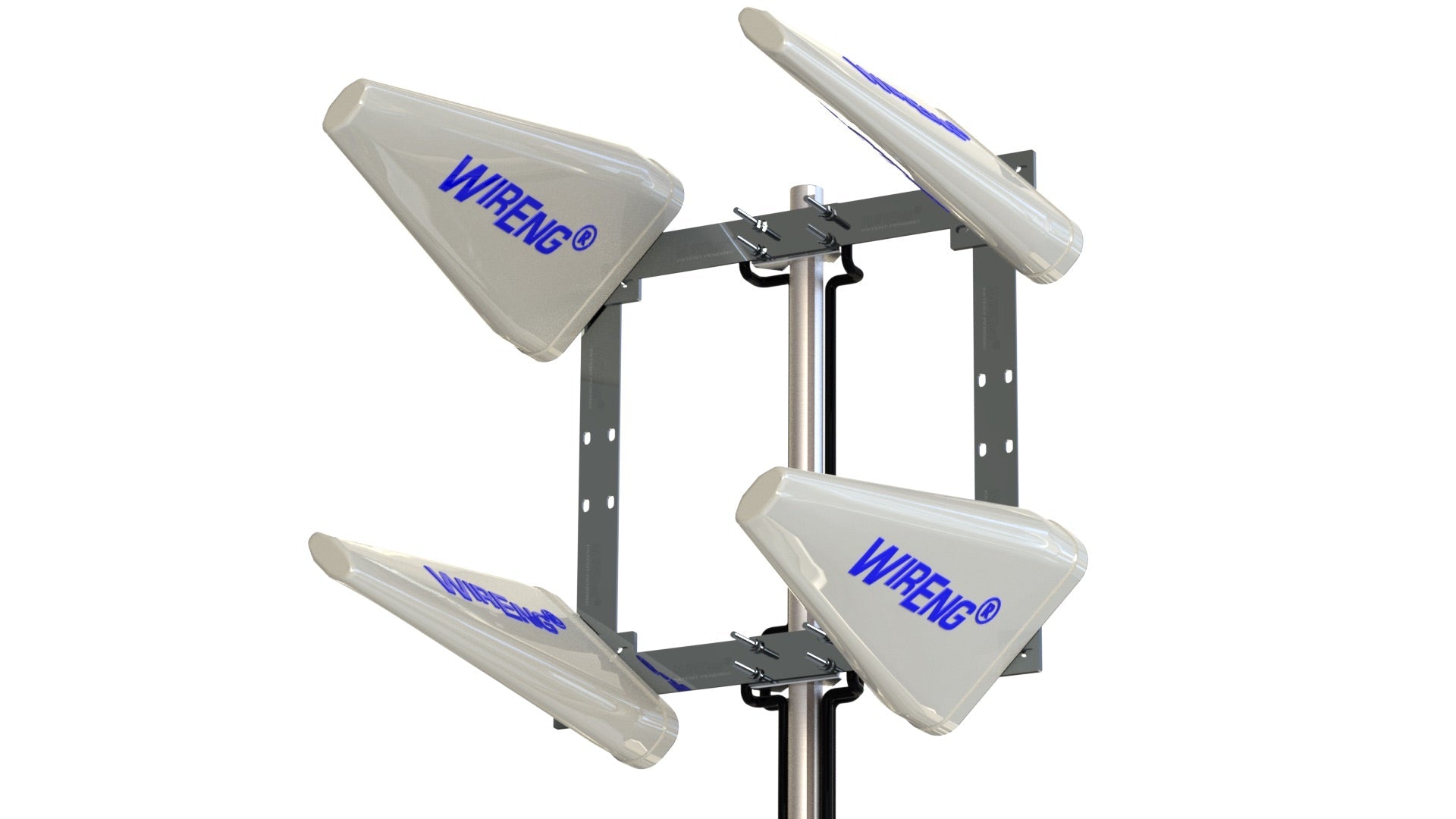

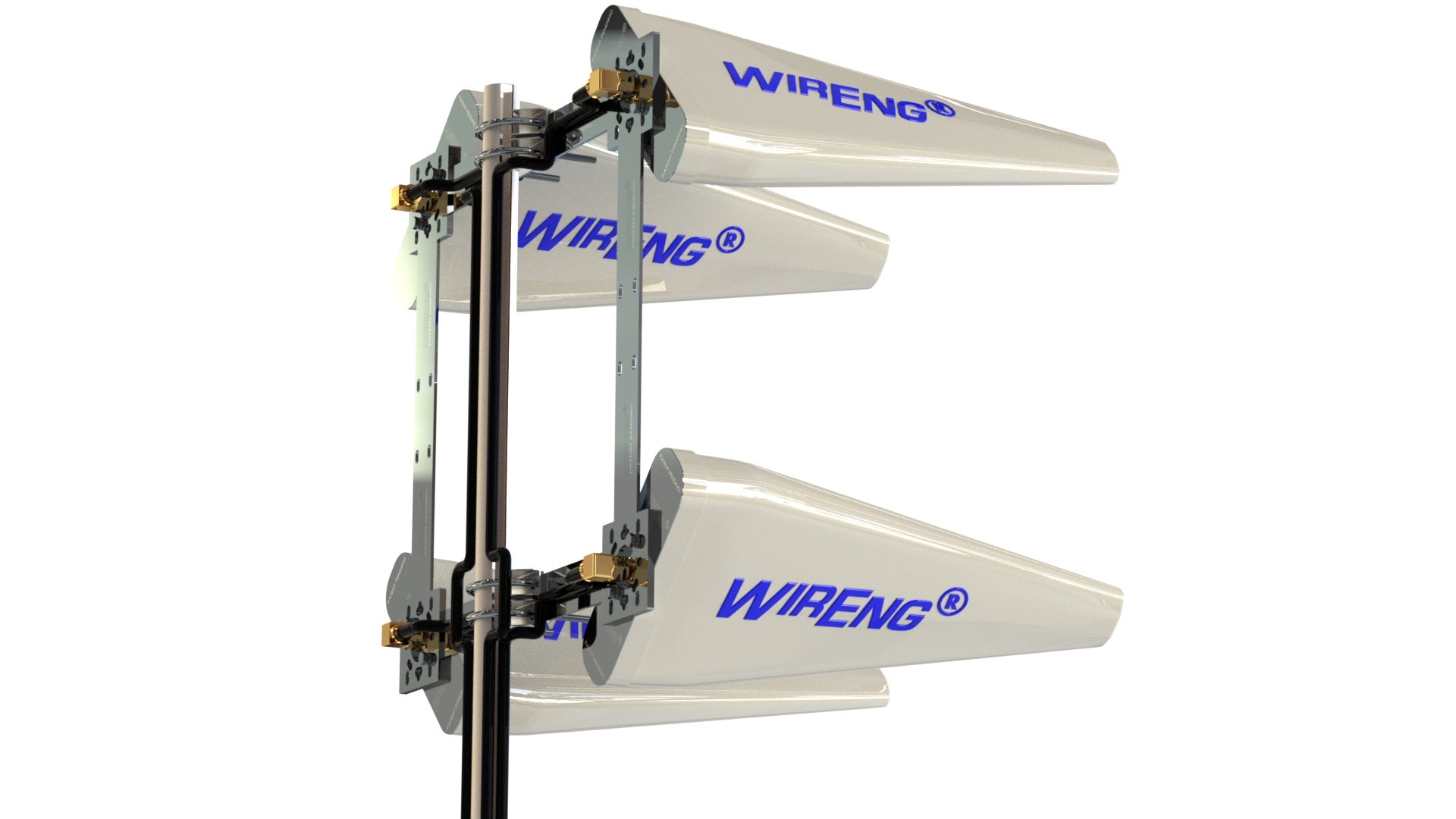

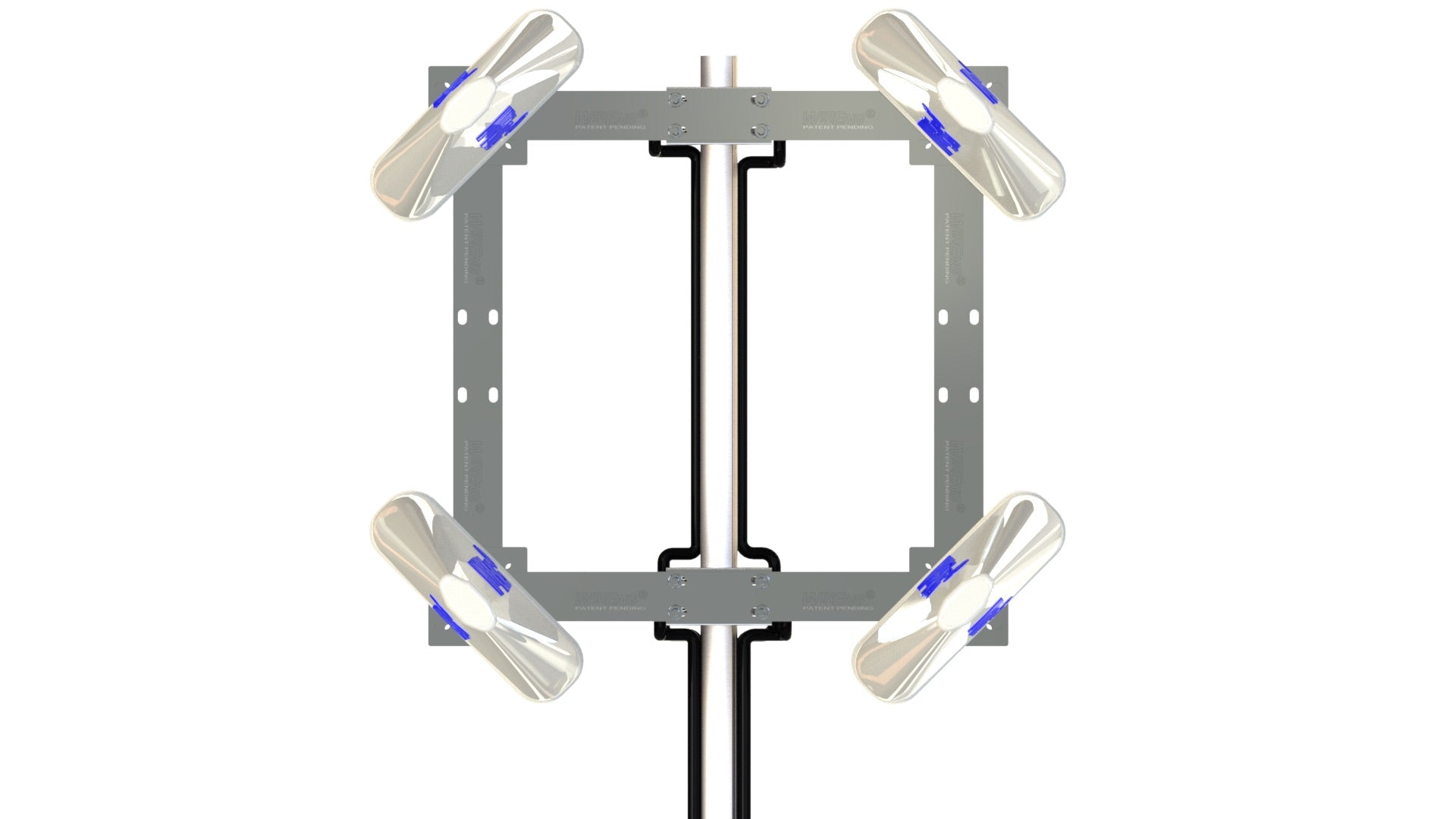

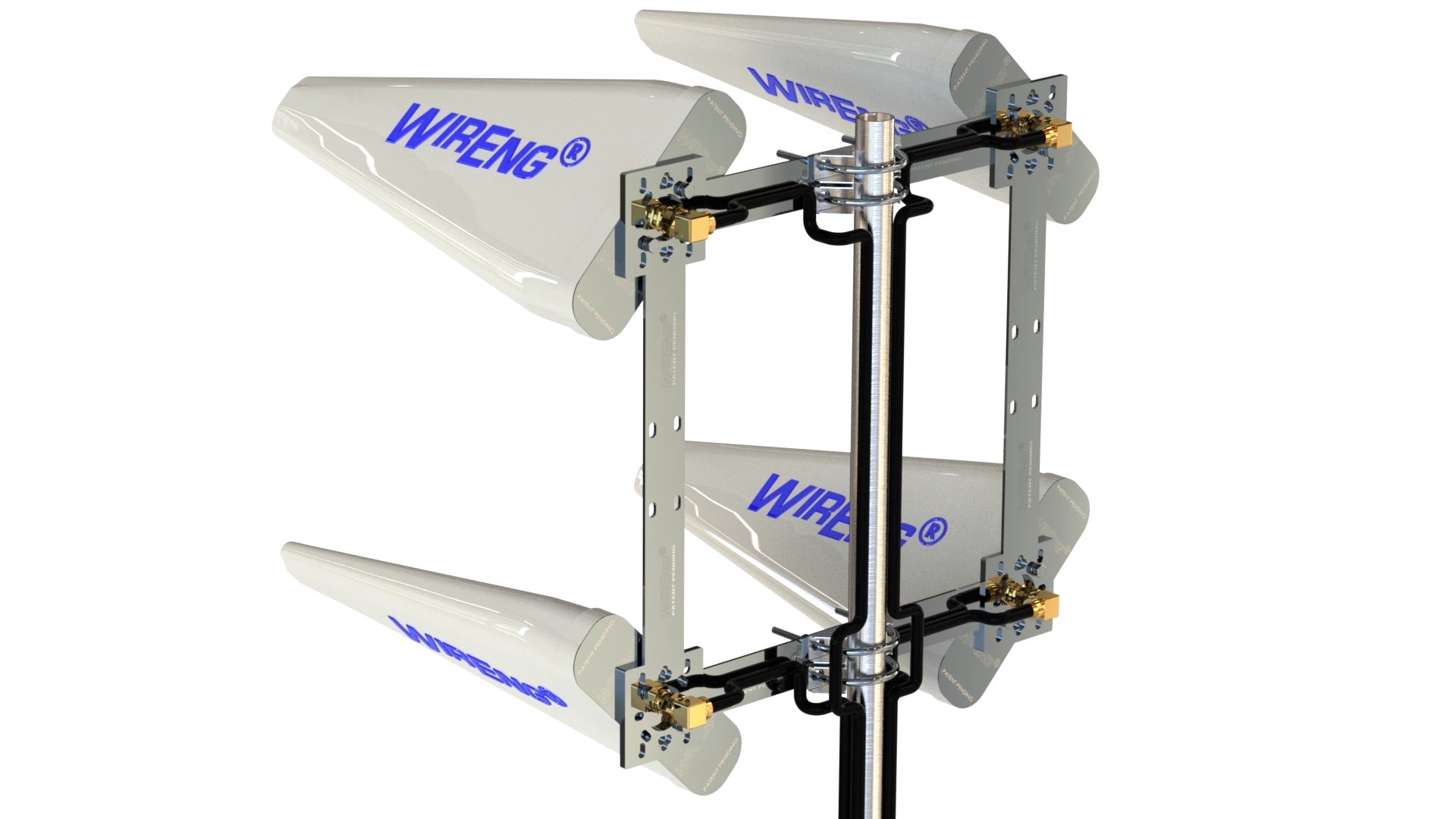

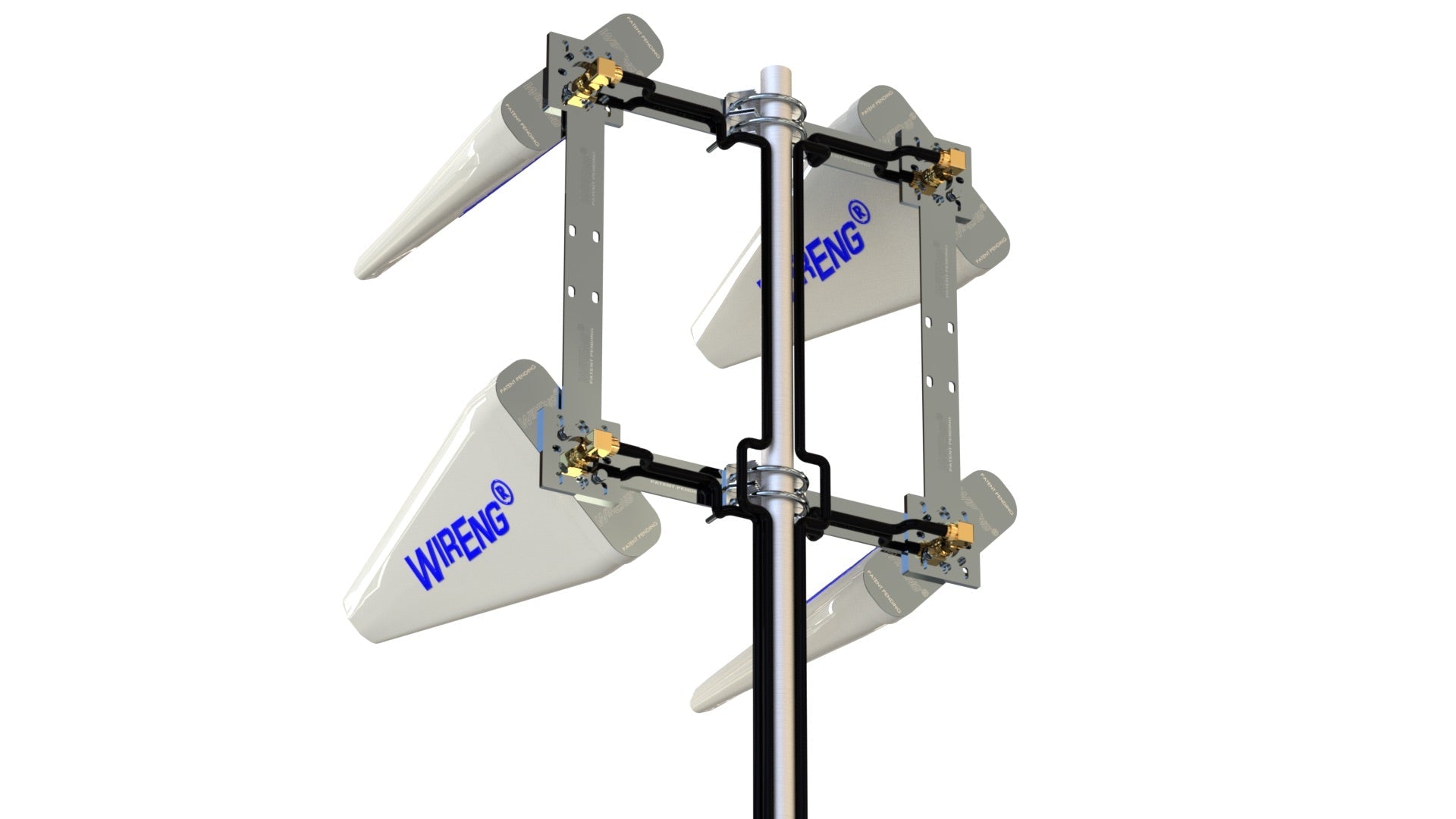

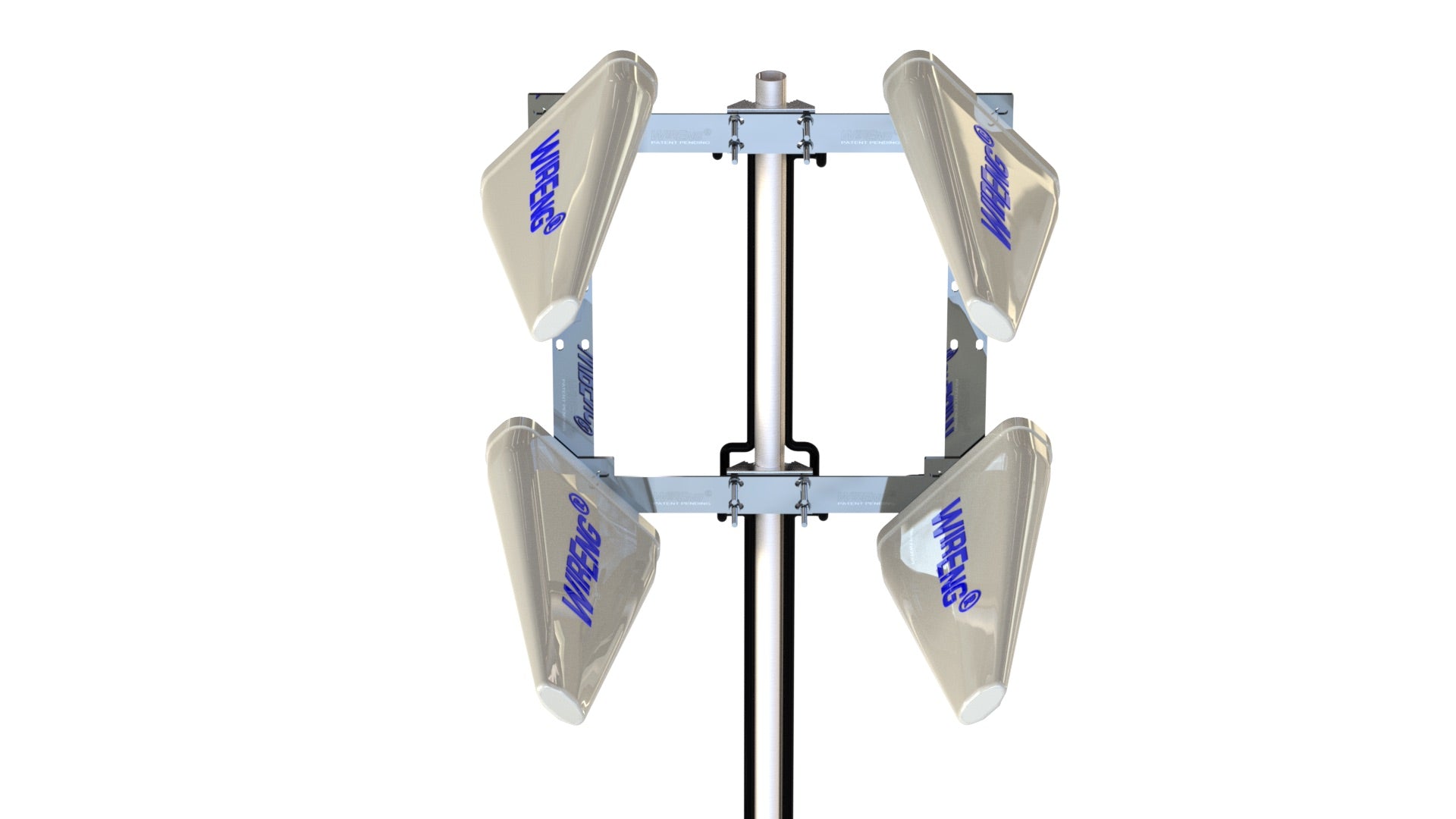

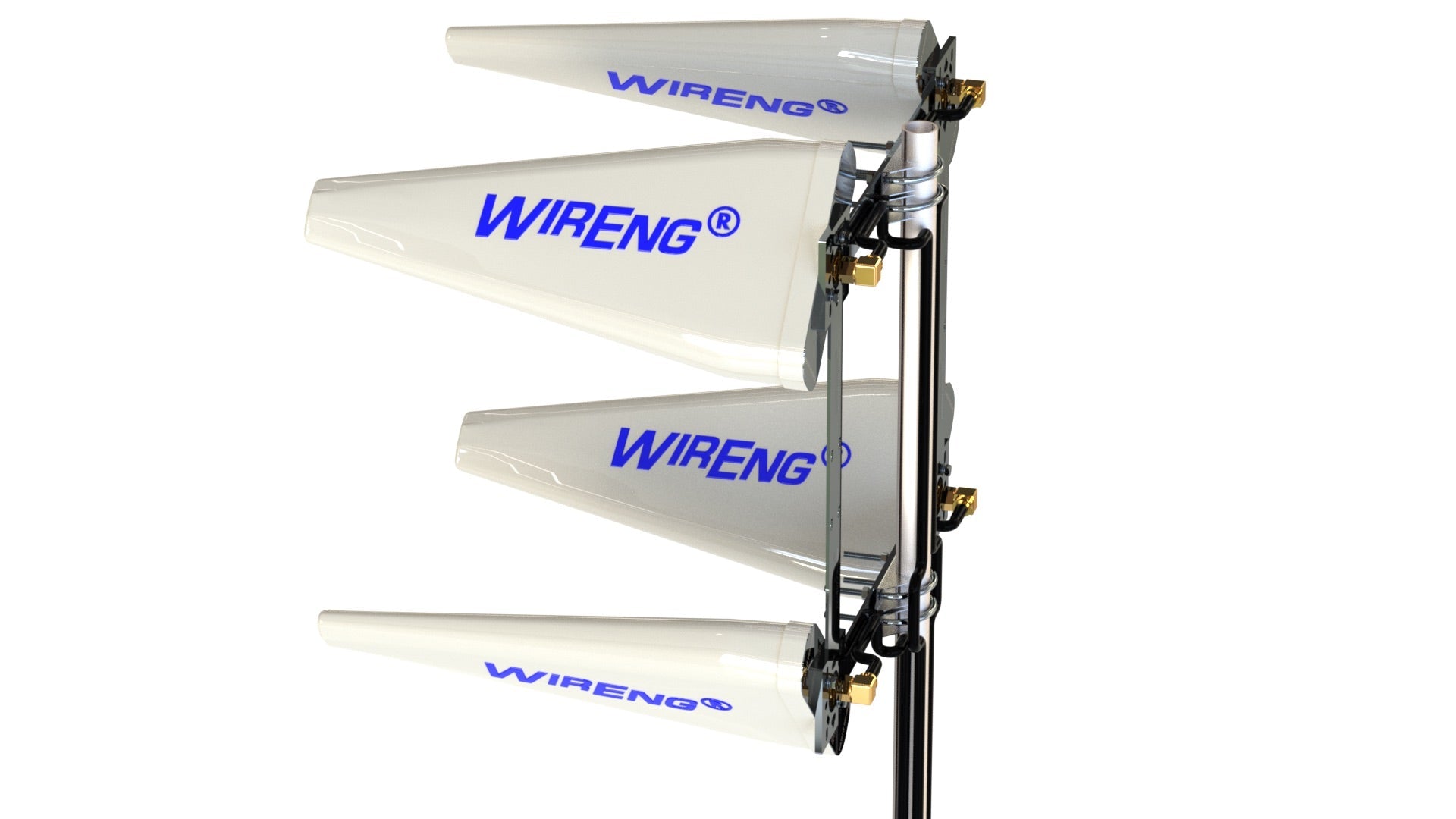

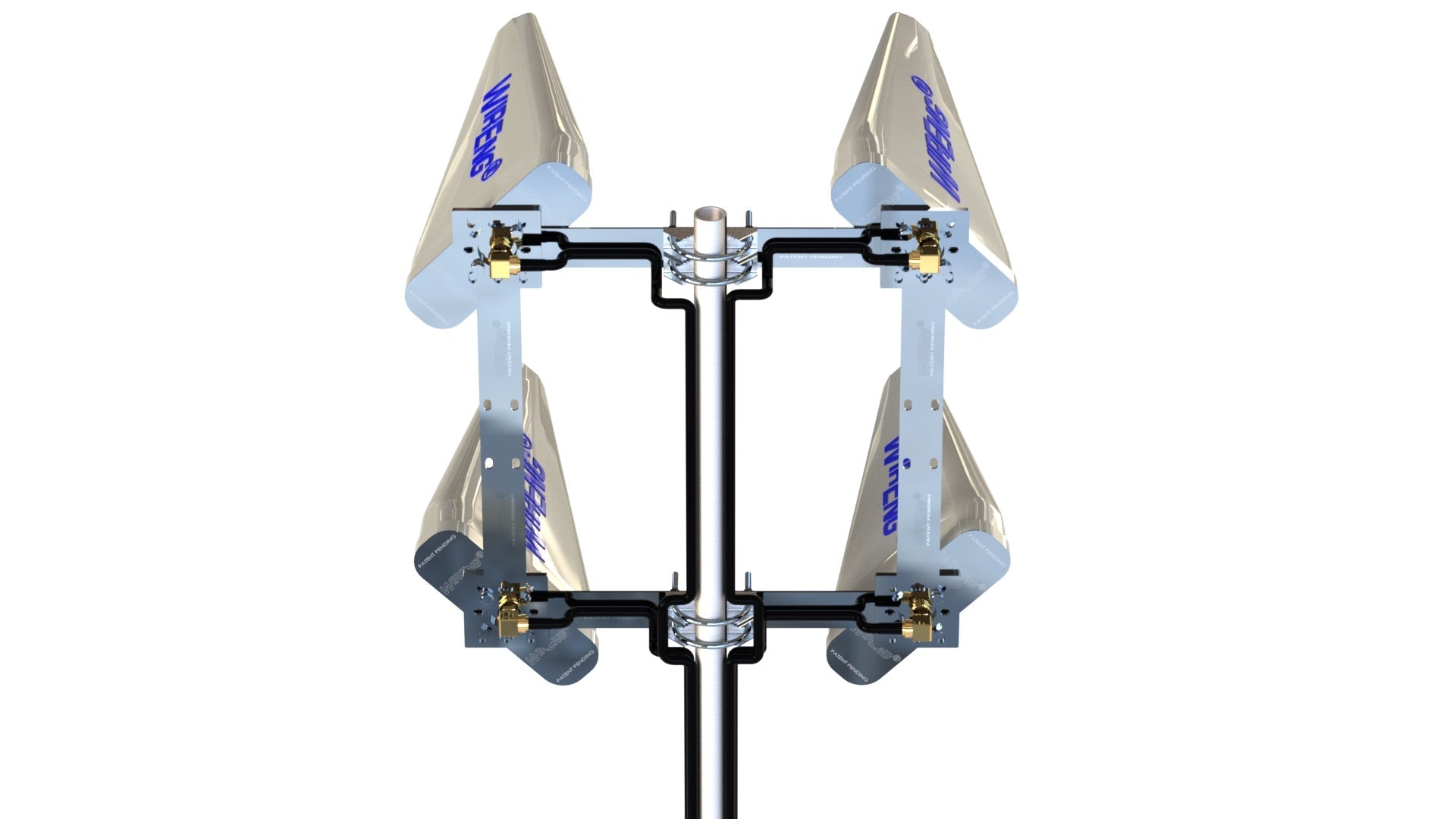

WideAnt4-Plus-5G™ MIMO 4x4 Quad Antenna Set for Cradlepoint W2005 (includes four 15-foot cables for direct connection to the Cradlepoint W2005)

$789.00 $1,899.00
SKU: WDP4-MIMO-4X4-W2005

The WideAnt4-Plus-5G-4x4™ by WirEng® is the extended-range, higher-gain version of the W-Ant4-5G™. The WideAnt4-Plus-5G-4x4™ by WirEng® is a truly ultra-wide band, MIMO 4x4 (operator tower is MIMO 4x4 and your modem/router has four distinct cellular antennas or cellular antenna connectors), directional, high-gain antenna fully supporting all 5G/4G/3G/2G bands worldwide. The W-Ant4-Plus-5G-4x4™ by WirEng® is also fully enclosed into anti-UV, thick acrylonitrile-butadiene-styrene plastic for flawless operation under all weather conditions, and it also possesses an ultra-low reflection coefficient, with a VSWR of only 1:1.0 to 1:1.5 over it's full range of 450 MHz to 6200 MHz. The WideAnt4-Plus-5G-4x4™ by WirEng® uses 24k gold, stainless steel, and copper, and has on-radome N-type, fully gold-plated connectors for maximum reliability, durability, and RF power transfer. The WideAnt4-Plus-5G-4x4™ by WirEng® is a semi-industrial grade antenna (since fully industrial-grade antennas must user glass fiber) and is recommended for any 4x4 MIMO (four connectors for the cellular antennas) modem, router, and hotspot to drastically increase download and upload data speeds even in very fringe, low-signal areas. The WideAnt4-Plus-5G-4x4™ by WirEng® includes four WirEng®'s marine-grade, fully stainless-steel MIMOMount™ for strict MIMO compliance and ease of installation. The recommended MIMO configuration is slanted (45 degrees) but all combinations are possible (vertical-vertical, horizontal-vertical, etc.). Extended 2-year warranty included. Patent pending.

Main Features

  • High Gain, True MIMO, and Directional (needs precise aiming)
  • All Cellular Bands Supported Worldwide
  • Drastically Increases Upload and Download Data Speeds
  • For All Routers, Hotspots, and Modems with Quadruple External Antenna
  • Stainless Steel Back Shield and Hardware On Each Element
  • Semi Industrial Grade (Anti-UV ABS)
  • 24K Gold Platen N-Connector on Radome
  • Extended Operating Temperature Range of -25° to +85° C
  • High Input Power (up to 250 W Continuous)
  • Strong and Durable
  • IP67 Rating (Protected Against Dust, Strong Water Jets, and Waves)
  • UL94 V-0 Flammability Rating
  • USA and International Trademark Current. Patent Pending

Technical Specifications

  • Operating frequency range, MHz: 450 to 6200
  • Radiation type: Directional
  • Polarization: Vertical / Slanted / Horizontal
  • Nominal impedance, Ohm: 50
  • Acceptable impedance range, Ohm: 45 to 78
  • Signal gain, dBi: 4 x 7 to 14
  • VSWR: 1:1 to 1:1.5
  • IM3 intermodulation, dBc: -156
  • Radome material: UV-Treated ABS
  • Shield material: Stainless Steel
  • Internal elements main material: Alloy
  • Bolt/nuts/washers/lockers material: Stainless Steel
  • Color: Off White
  • Wind resistance, kmh: 215
  • Storage temperature, °C: -35 to 115
  • Environmental rating: EN 300 019-2-4
  • Connector type: Gold-Plated N-Type
  • Mount type: Pole
  • Flammability Rating: UL94 V-0
  • International Protection Marking: IP67
  • Weight, kg (pounds): 9.60 kg (18.96 lbs)
  • Dimensions, cm (inches): 57 x 57 x 57 cm (22.5 x 22.5 x 22.5 in)
  • Suitable markets: Worldwide
  • Warranty: 2 Years

This Set Includes

  • Four WideAnt-Plus-5G™ Antennas
  • Four MIMOMount™
  • Four 15-foot cables for direct connection to the Cradlepoint W2005
