OmniAnt4-5G-4x4™ for Digi TX64 High Diversity Omni-Directional Quad MIMO 4x4 Antenna for RV, Vehicles, Boats, Caravan, Yacht

OmniAnt4-5G-4x4™ for Digi TX64 High Diversity Omni-Directional Quad MIMO 4x4 Antenna for RV, Vehicles, Boats, Caravan, Yacht

(NOTE: DIGI TX64 NOT included)

The OmniAnt4-5G-4x4™ is a powerful 4x4 MIMO quad antenna designed to provide superior coverage for RV, vehicle, boat, caravan, and yacht applications. With four ports and omnidirectional transmission, this antenna can provide up to 8 dB gain and ensures high-density links for all environments.

• A Compact, truly ultra-wide band, medium-gain, ultra-efficient, and omnidirectional antenna for RV for your Digi TX64.
• Use in vehicles, small boats, caravans, RV's, and whenever aiming at a precise location is unfeasible.
• This newest version of the OmniAnt4-5G-4x4™ covers all possible 5G/4G/3G/2G cellular bands worldwide.
• Can also be used in areas surrounded by many cellular towers spread out in many directions, such as in highly-populated areas, as long as the available signal is not too low (i.e., -85 dBm or better).
• The OmniAnt4-5G-4x4™ by WirEng® is also splash-proof and qualifies as a marine antenna because of its sturdiness and the employment of gold, stainless steel, and thick ABS plastic.
• The OmniAnt4-5G-4x4™ by WirEng® can also be used under severe weather conditions such as heavy rain, snow, high wind, etc.
• The OmniAnt4-5G-4x4™ by WirEng® is truly compatible with your Digi TX64, and it operates in the MIMO 4x4 configuration for maximum efficiency and therefore range.

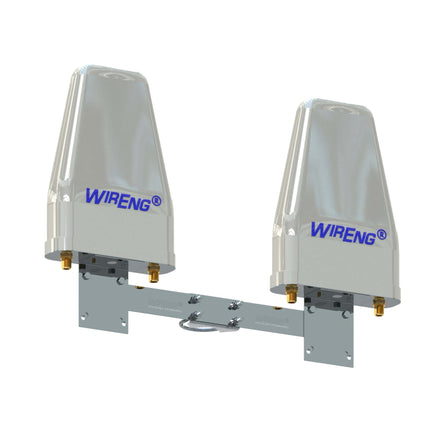

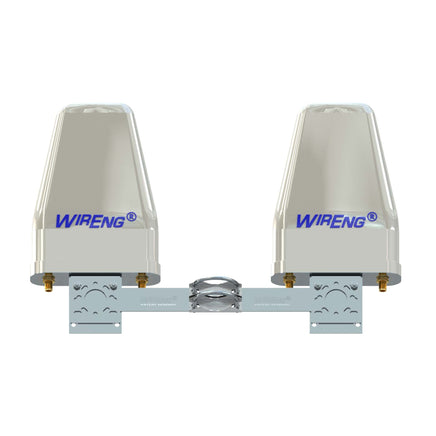

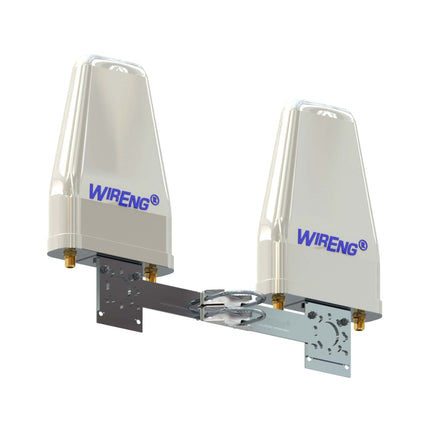

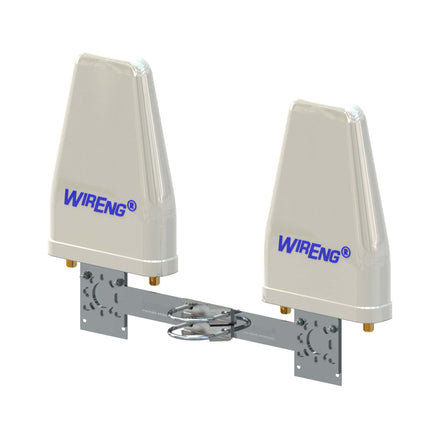

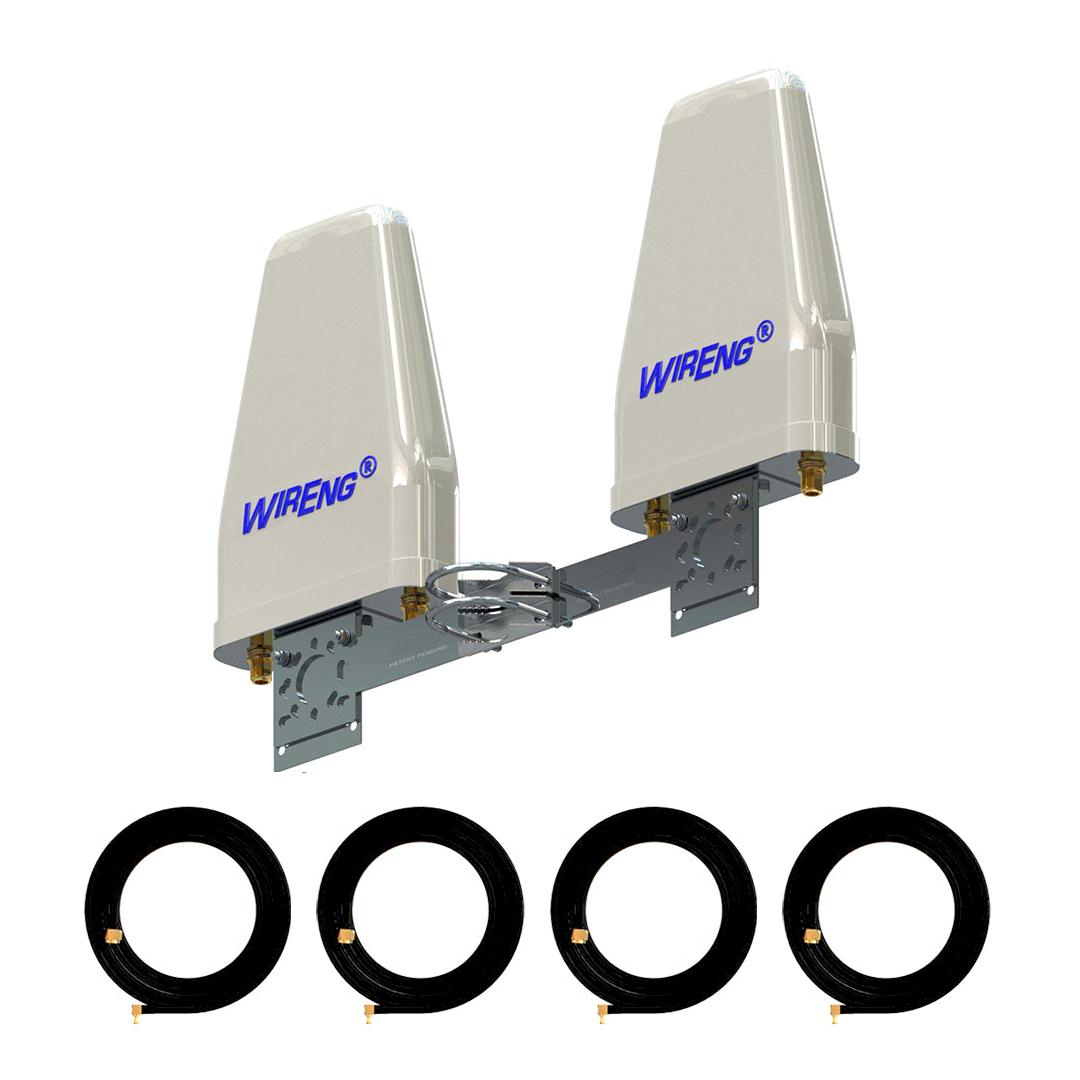

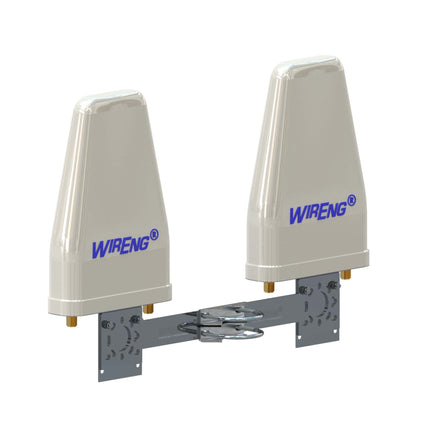

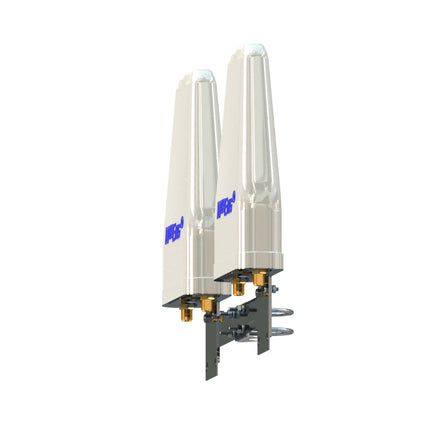

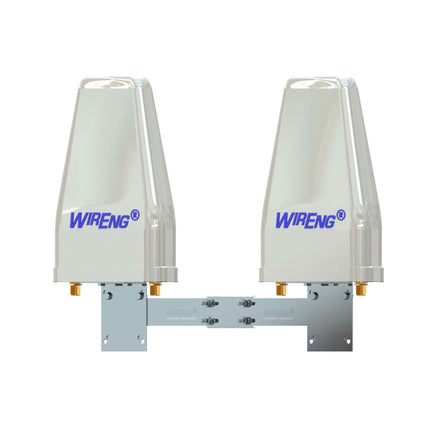

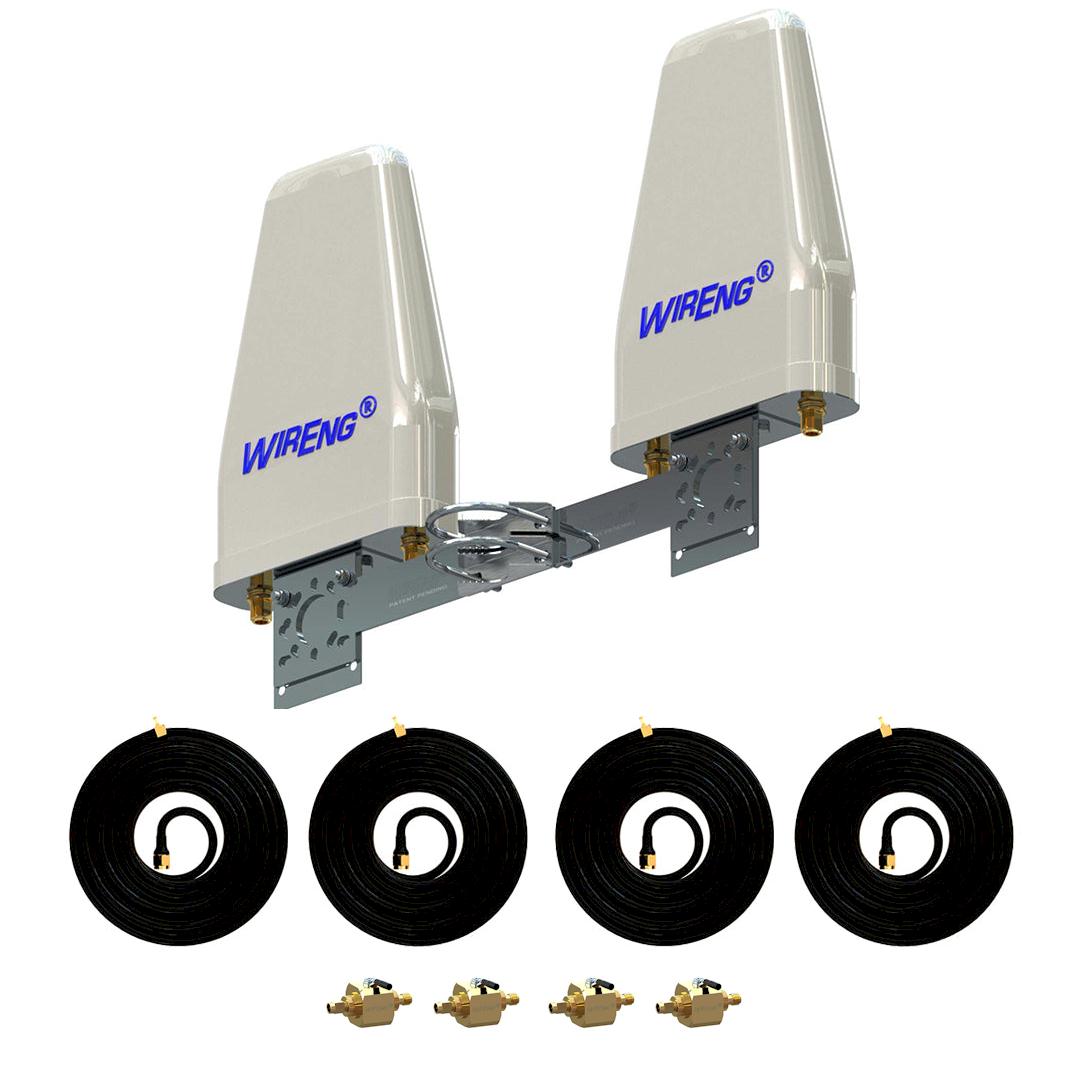

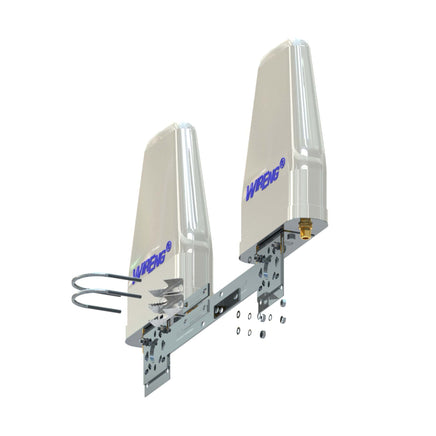

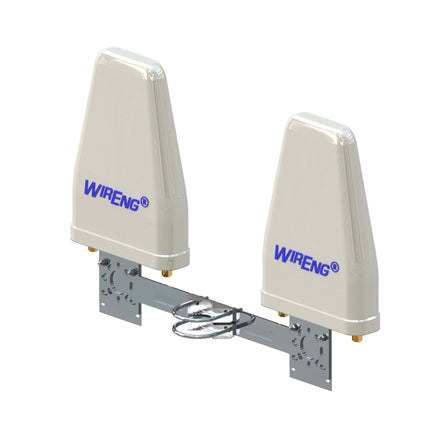

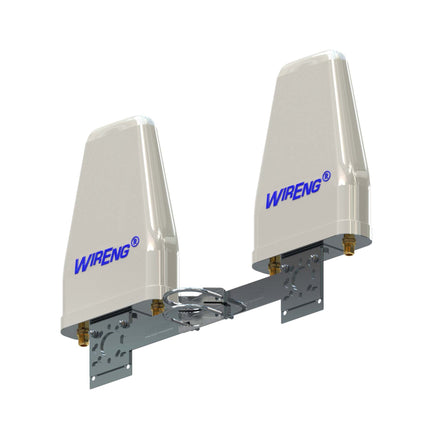

• The OmniAnt4-5G-4x4™ by WirEng® includes WirEng®'s marine-grade, fully stainless-steel MIMOMount™ for MIMO-separation compliance and ease of installation.
• The OmniAnt4-5G-4x4™ by WirEng® comes with WirEng® extended 2-year warranty. Patent pending.

Main Features

• Compact Omni and MIMO Antenna with Worldwide Coverage
• 100% compatible with the Digi TX64
• True MIMO 4x4 Operation for Best SINR/CINR
• Compact Solution for Small Boats, Caravans, RV's, Mobile Homes
• Semi-Industrial Grade (Anti-UV ABS Radome)
• Truly Omni-Directional Radiation Pattern
• 24K Gold Platen N-Connectors on Radome
• Extended Operating Temperature Range of -25° to +85° C
• High Input Power (up to 250 W Continuous)
• Strong and Durable
• IP67 Rating (Protected Against Dust, Strong Water Jets, and Waves)
• UL94 V-0 Flammability Rating
• USA and International Trademark Current. Patent Pending

Technical Specifications

• Operating frequency range, MHz: 450 to 6200
• Radiation type: Omnidirectional
• Nominal impedance, Ohm: 50
• Acceptable impedance range, Ohm: 45 to 78
• Signal gain, dBi: 4 x 5.5 to 11.3
• VSWR: 1:1 to 1:1.5
• IM3 intermodulation, dBc: -156
• Radome material: UV-Treated ABS
• Shield material: Stainless Steel
• Internal elements main material: Alloy
• Bracket/Bolt/Nuts/Washers/Lockers Material: Stainless Steel
• Color: Off White
• Wind resistance, kmh: 215
• Storage temperature, °C: -35 to 115
• Environmental rating: EN 300 019-2-4
• Connector type: Gold-Plated N-Type
• Mount type: Pole
• Flammability Rating: UL94 V-0
• International Protection Marking: IP67
• Weight, kg (pounds): 2.81 kg (6.26 lbs)
• Dimensions, cm (inches): 61 x 13 x 40.5 cm (24 x 5 x 16 in)
• Suitable markets: Worldwide
• Warranty: 2 Years
