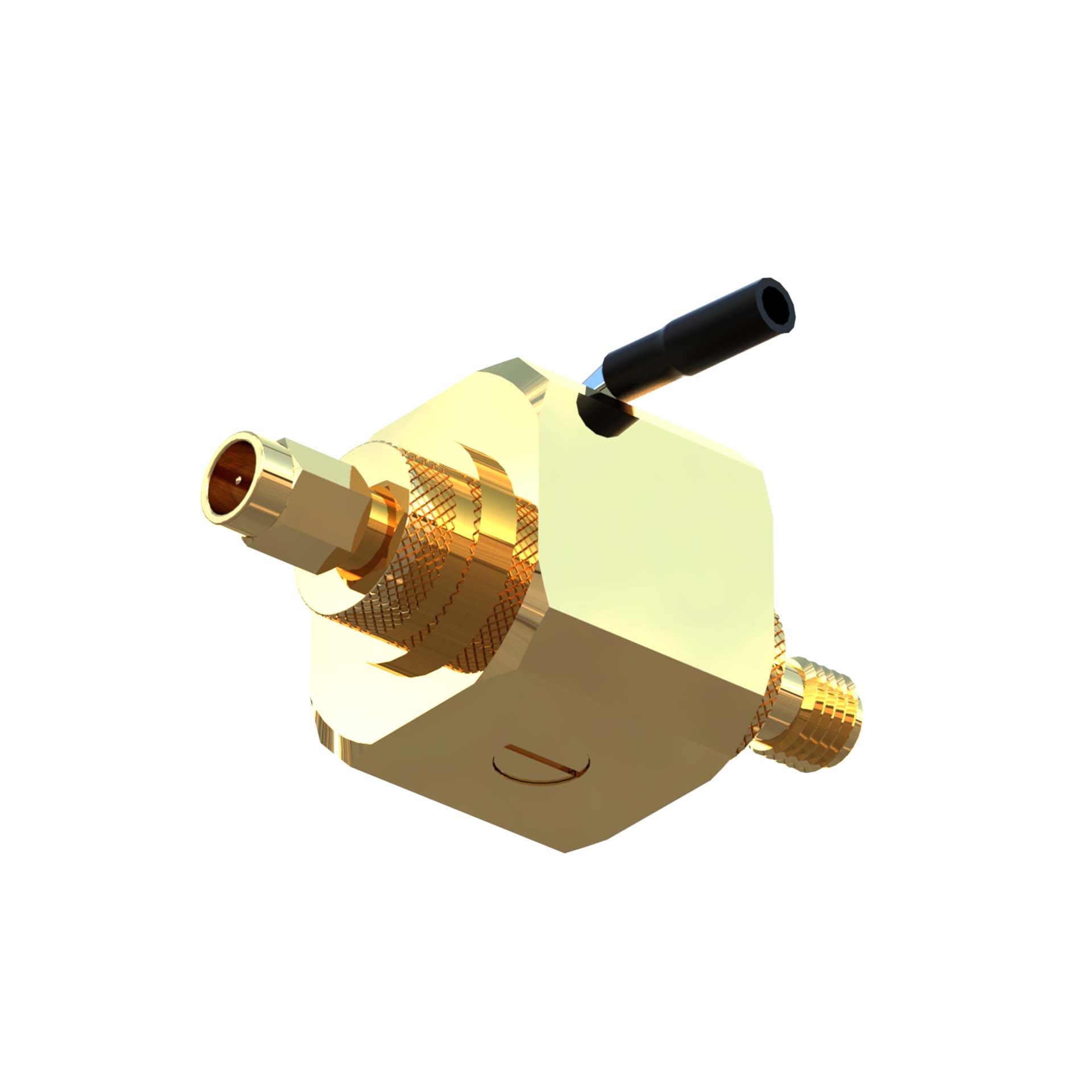

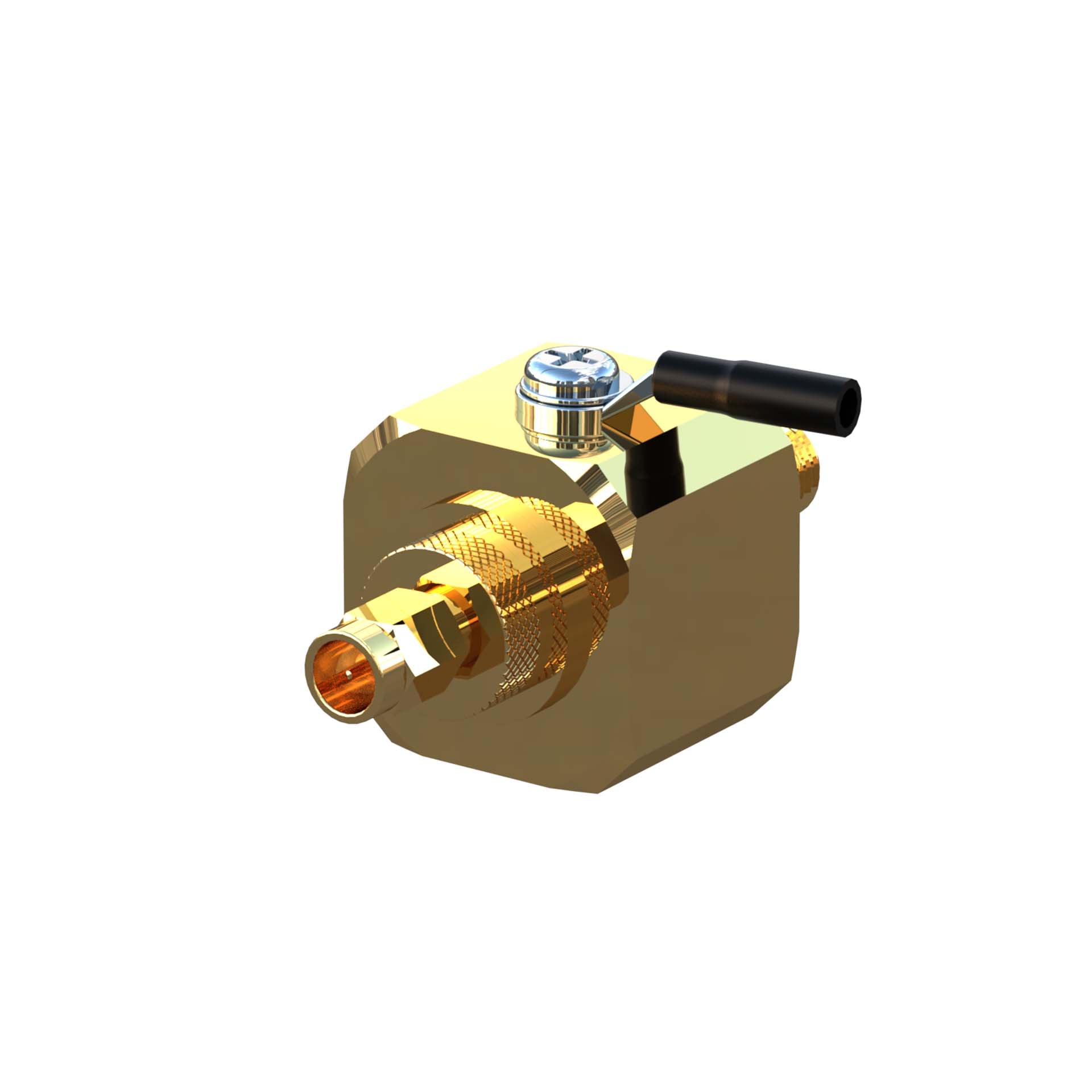

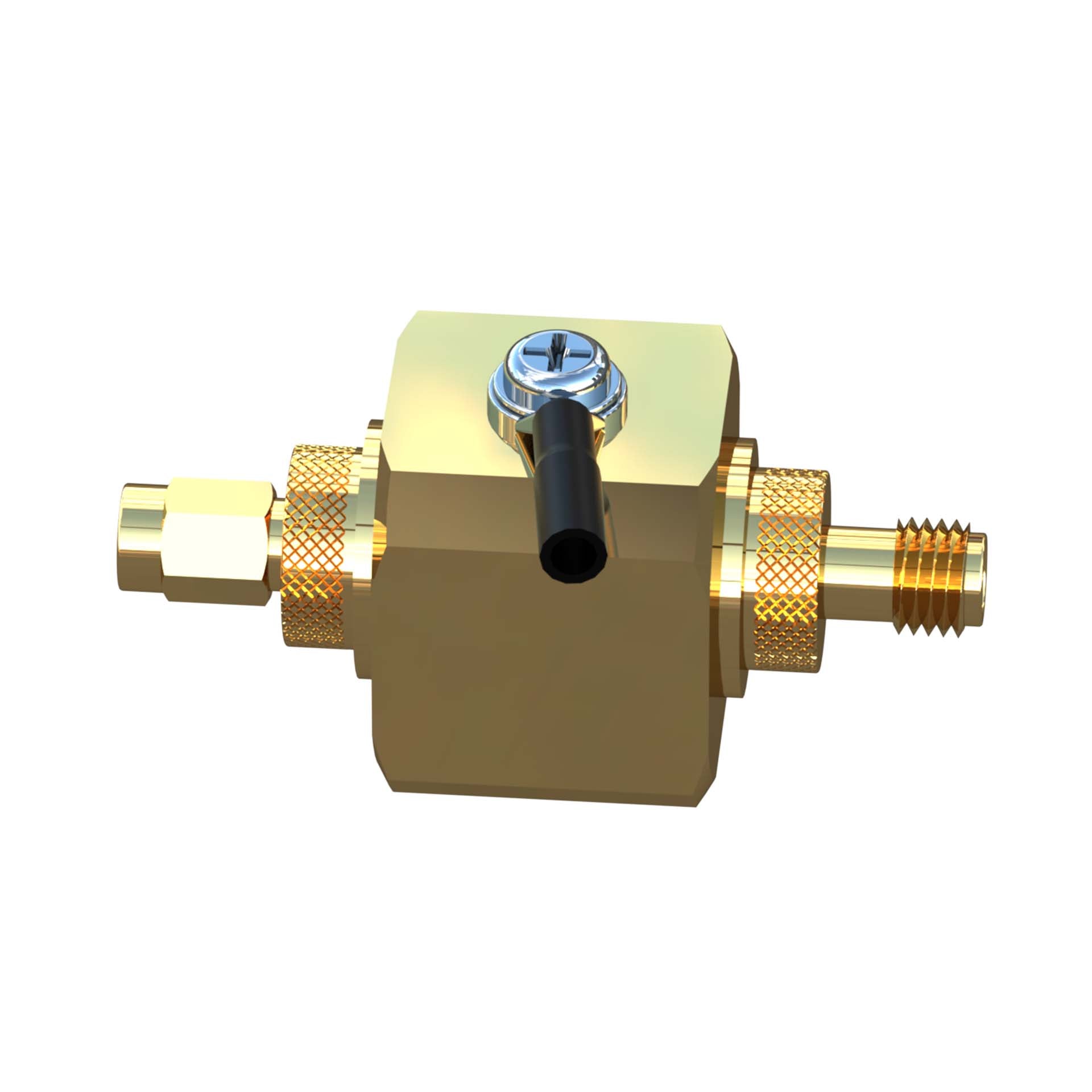

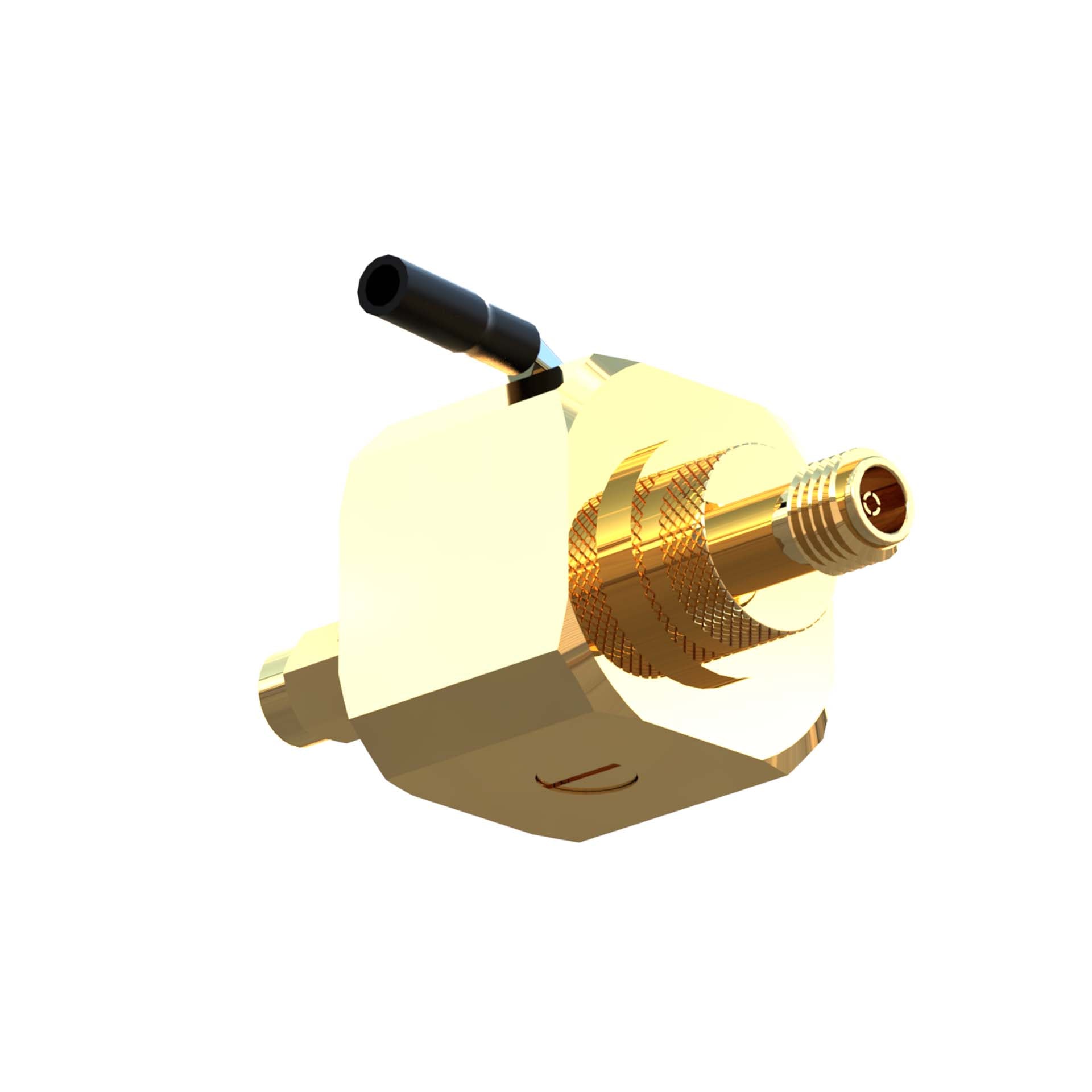

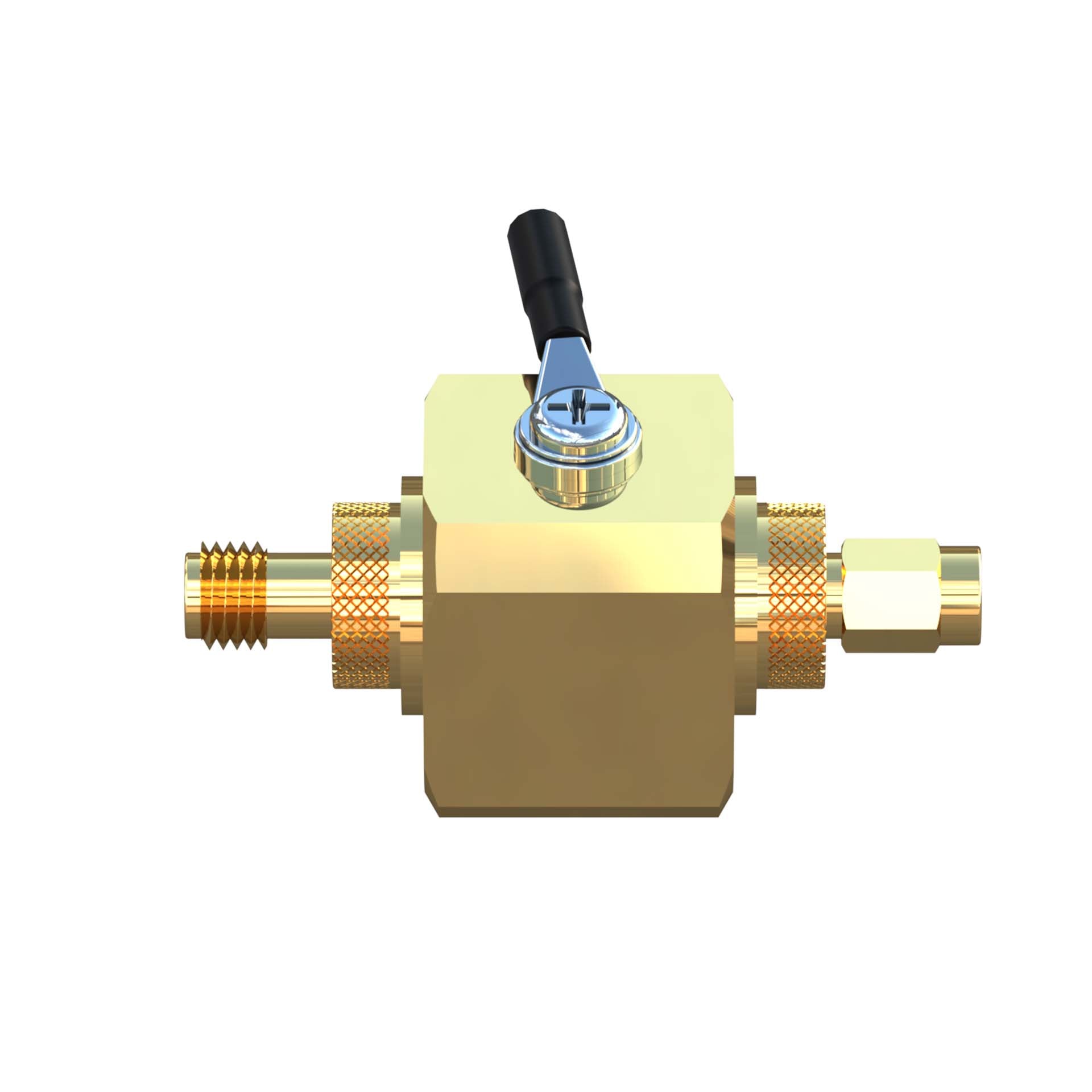

LightningPro-5G-SMA™Lightning Strike Arrester Protector All Bands 5G/4G/3G/2G Industrial Grade Gold Plated Up To 6200 MHz Any Router Hotspot Modem

Regular price $155.00 $155.00

The LightningPro-5G-SMA™ by WirEng® is the latest high-power, high-reliability, ultra-efficient lightning-strike protector, strongly recommended with every externally-mounted antenna for personal and equipment protection. Unlike other protectors, the LightningPro-5G-SMA™ by WirEng® installs just a few inches away from the device (or on the device itself, when feasible), so it even protects against lightning strikes to the coaxial cables, and not only to the antennas. As long as the LightningPro-5G-SMA™ by WirEng® is connected to a reliable electric ground, the LightningPro-5G-SMA™ by WirEng®'s state of the art circuitry will immediately short a lightning discharge into the household ground network when properly installed (reliable household ground connection required). The LightningPro-5G-SMA™ by WirEng® patented design requires no installation since it matches connectors types of the great majority of modems/routers/hotspots (ExtAnt™ adapters by WirEng® are also available for the few non-compatible devices). The LightningPro-5G-SMA™ by WirEng® supports every possible cellular band worldwide thanks to its exceptional 450 MHz to 6200 MHz ultra-extended frequency range, with nearly lossless operation (99% average efficiency). The LightningPro-5G-SMA™ by WirEng® is ideal for areas where electric storms are common, but it is also recommended in areas that only experience lightning activity rarely, as antennas tend to attract lightning just as lightning rods do, especially when installed higher than other objects on the roof; nonetheless, even antennas installed on the side of a structure or on a balcony may be subject to lightning strikes, hence the LightningPro-5G-SMA™ by WirEng® is recommended for every possible situation. Additionally, the LightningPro-5G-SMA™ by WirEng® will short electric charges due to accidental contact with strained electric wires as well, as an added benefit. The connectors on the LightningPro-5G-SMA™ by WirEng® are SMA Male and SMA Female. The LightningPro-5G-SMA™ by WirEng® is made one by one with highly skilled craftsmanship and include a two-year warranty period.

Main Features

  • Ultra-Wide Band 5G/4G/3G/2G Surge Arrester
  • Immediately Short-Circuits High Potentials Coming from Lighting Strikes to the Ground
  • Protects Persons and Equipment
  • Install Very Near Your Router/Hotspot/Modem for Maximum Protection
  • Also Protects Against Accidental Contact to High-Voltage Cables
  • Can Be Connected Directly To Your Router (if your router has SMA connectors) for Even Higher Protection
  • Ultra-Low Insertion Loss (99% efficient)
  • Extended Operating Temperature Range of -25° to +85° C (temperatures outside of this range will decrease efficiency)
  • Adapter / Strain-Relief Patch Cable Included
  • Fully 24K Gold Plated for Maximum Power Transfer, Durability, and Reliability
  • IP67 Rating (Protected Against Dust, Strong Water Jets, and Waves)
  • UL94 V-0 Flammability Rating
  • USA and International Trademark Current. Patent Pending

Technical Specifications

  • Operating frequency range, MHz: 0 to 6200
  • Radiation type: -
  • Polarization: All
  • Nominal impedance, Ohm: 50
  • Acceptable impedance range, Ohm: 45 to 78
  • Signal gain, dBi: -
  • VSWR: 1:1.5
  • IM3 intermodulation, dBc: -
  • Radome material: Gold-Plated Brass
  • Shield material: -
  • Internal elements main material: Silver / Gold
  • Bolt/nuts/washers/lockers material: Stainless Steel
  • Color: Gold
  • Wind resistance, kmh: -
  • Storage temperature, °C: -50 to 150
  • Environmental rating: EN 300 019-2-4
  • Connector type: Gold-Plated N-Type
  • Mount type: -
  • Flammability Rating: UL94 V-0
  • International Protection Marking: IP67
  • Weight, kg (pounds): 0.05 kg (0.11 lbs)
  • Dimensions, cm (inches): 2.2 x 4.85 x 2.2 cm (0.86 x 1.90 x 0.86 in)
  • Suitable markets: Worldwide

Warranty: 2 Years
